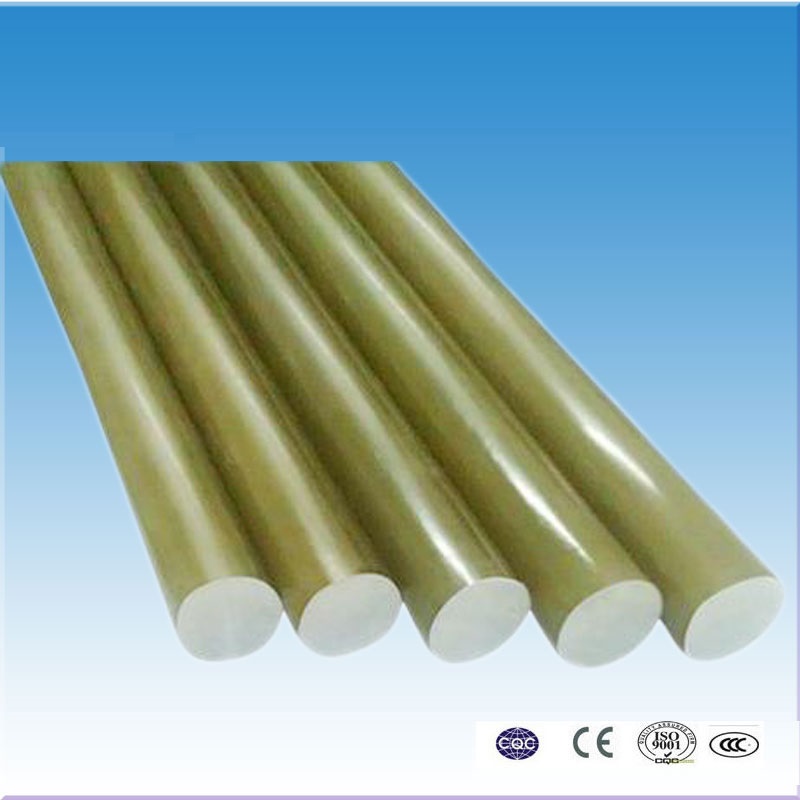

Epoxy glass cloth laminated rod(moulded rod)
Share to:
Epoxy glass cloth laminated rod(moulded rod)
Detail
Code: rod Series: rod
Spec: 10-120mm Material: epoxy
Color: 绿色 Brand: 睿源

1. Epoxy glass cloth laminated rod(moulded rod)

We are manufacturer for insulation matierla, our factory had established 15years. good qulity and competitive price, welcome you

Epoxy Phenolic Laminated Glass Cloth Rod is made from electrical glass cloth that impregnated with epoxy resin under pressure and heat, with Mechanical and electrical application, good moisture resistance.3840, 3841 (China standard) is in accordance with FR4, G10 (NEMA standard)

1). High quality Epoxy fiber Laminated rod include 3840,3841

3). Dia: 8mm to 300mm

4). Length: 1000mm

5).Thermal Grade: B

Color: yellow, red , green, black

It is widely used for the insulating spare parts of the electrical appliances and transformers

Properties

Grade

Epoxy glass cloth laminated rod

Properties

Units

3840

3841

3841F

Density


Dia(mm)

g/cm3

1.70-1.79

1.70-1.79

1.70-1.79

Water absorption rate (D-24/23)

6

%

0.5

0.5

13

25

>

25~51

Flexural strength


MPa

343

241

241

Tensile strengh


MPa

196



Compression strength (Axial)


MPa


241

241

Insulation resistance parallel to laminations




A: Under normal condition


W

1.0×1010



D-24/23: Immersion in water


W

1.0×107



Breakdown voltage parallel to laminations (in transformer oil)


KV

15

15

15


(90±5°C)

(90±5°C)

(90±5°C)

Flammability





FVO

Color



Natural

green

Green

Reference standard
