Epoxy Fiberglass laminate sheet has been approved by UL and the products have passed ROHS test.
1. Brief Description:
Epoxy Fiberglass Cloth Laminated sheet is made of ethoxyline and fiberglass cloth, type is 3240 high mechanical performance under medium temperature, stable electrical properties under high temperature, fit for machine, electric apparatus and insulating parts for electronics.
.ngredients and Features

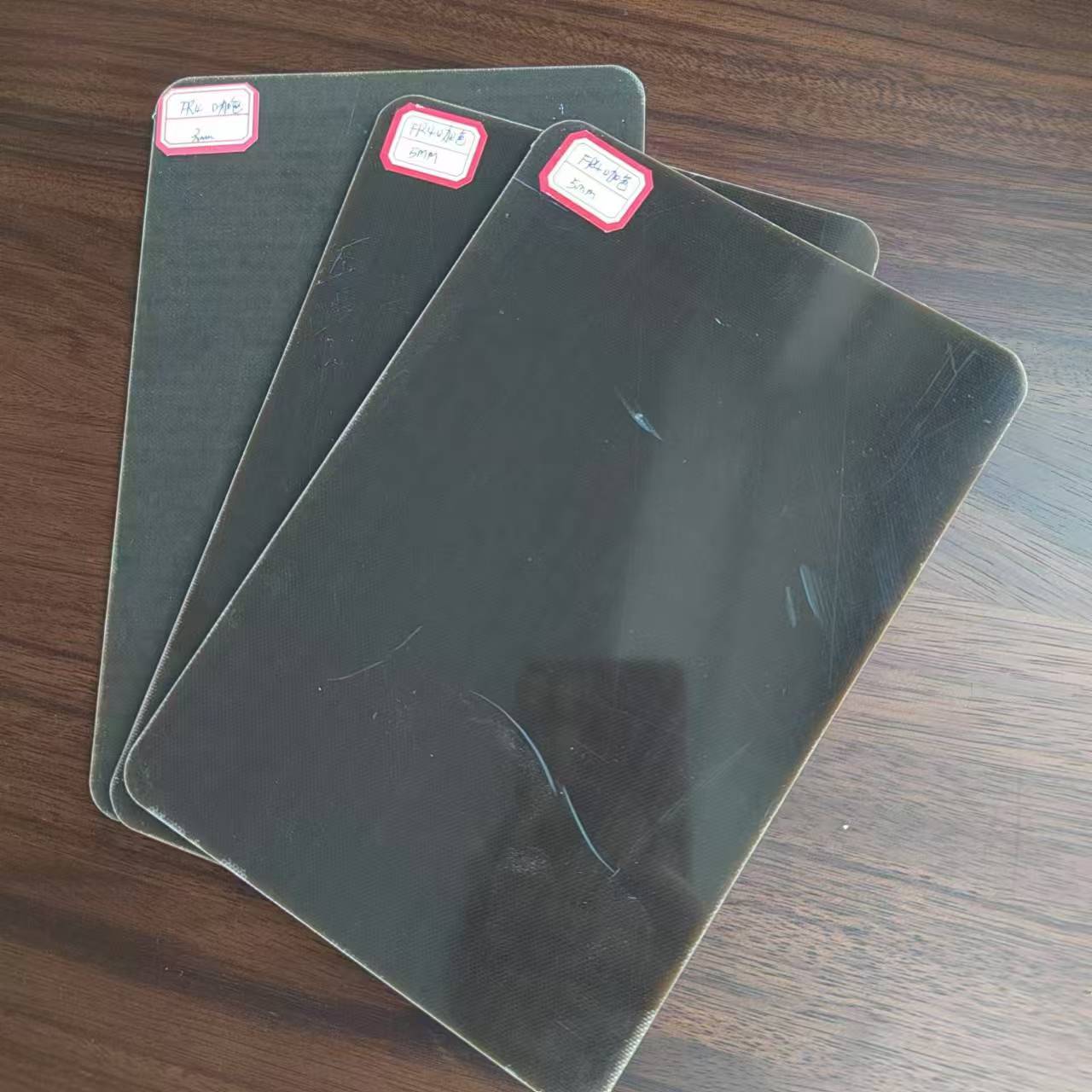

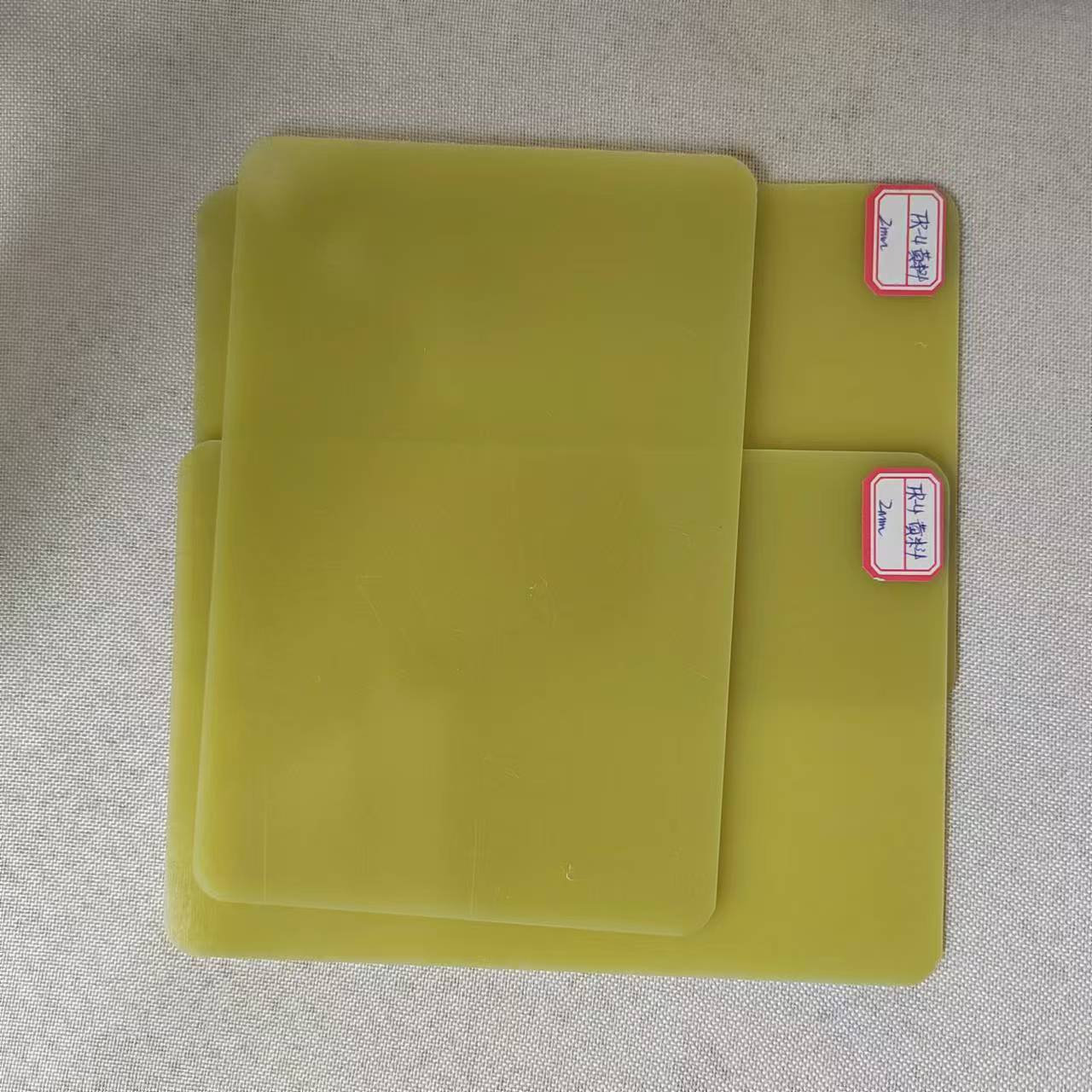

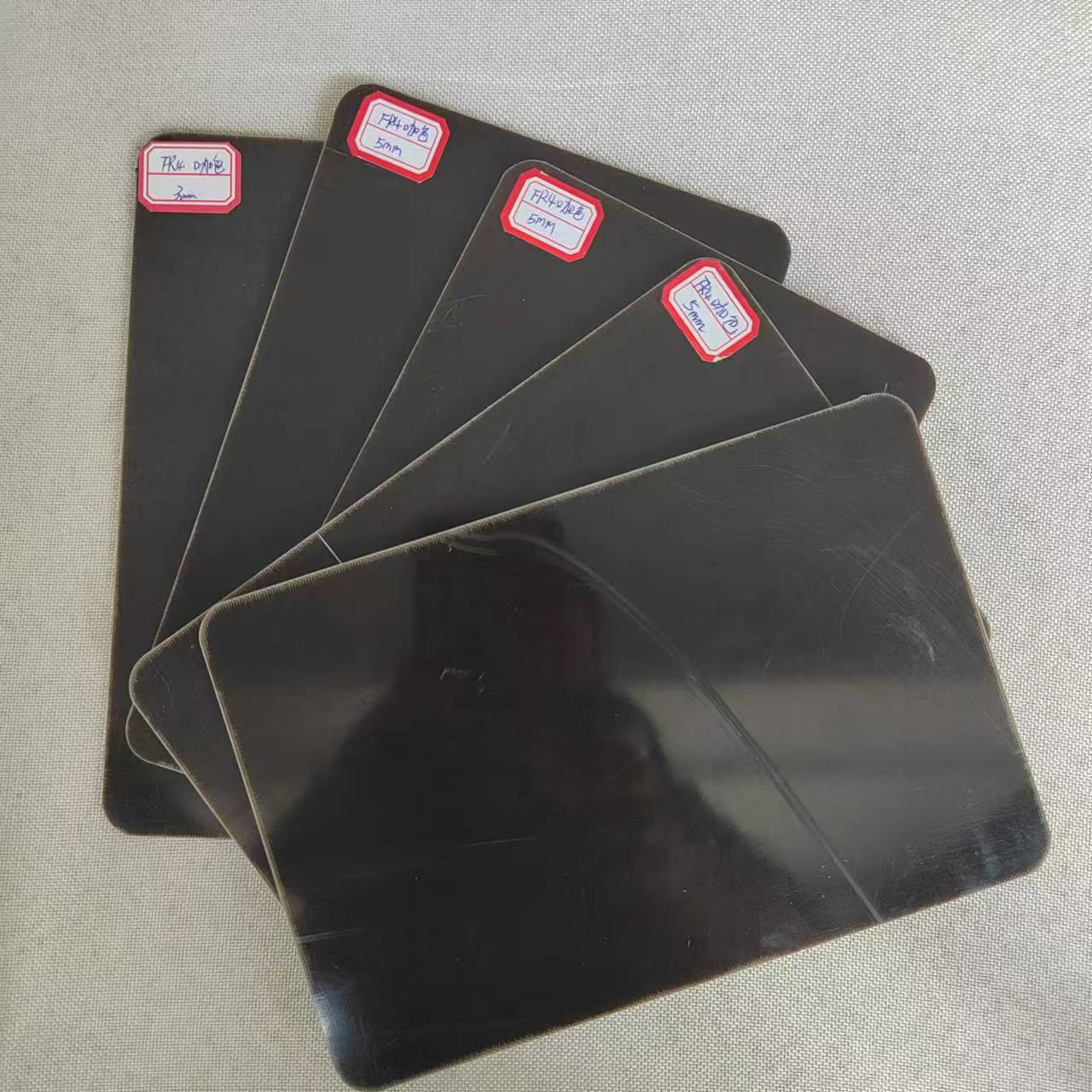

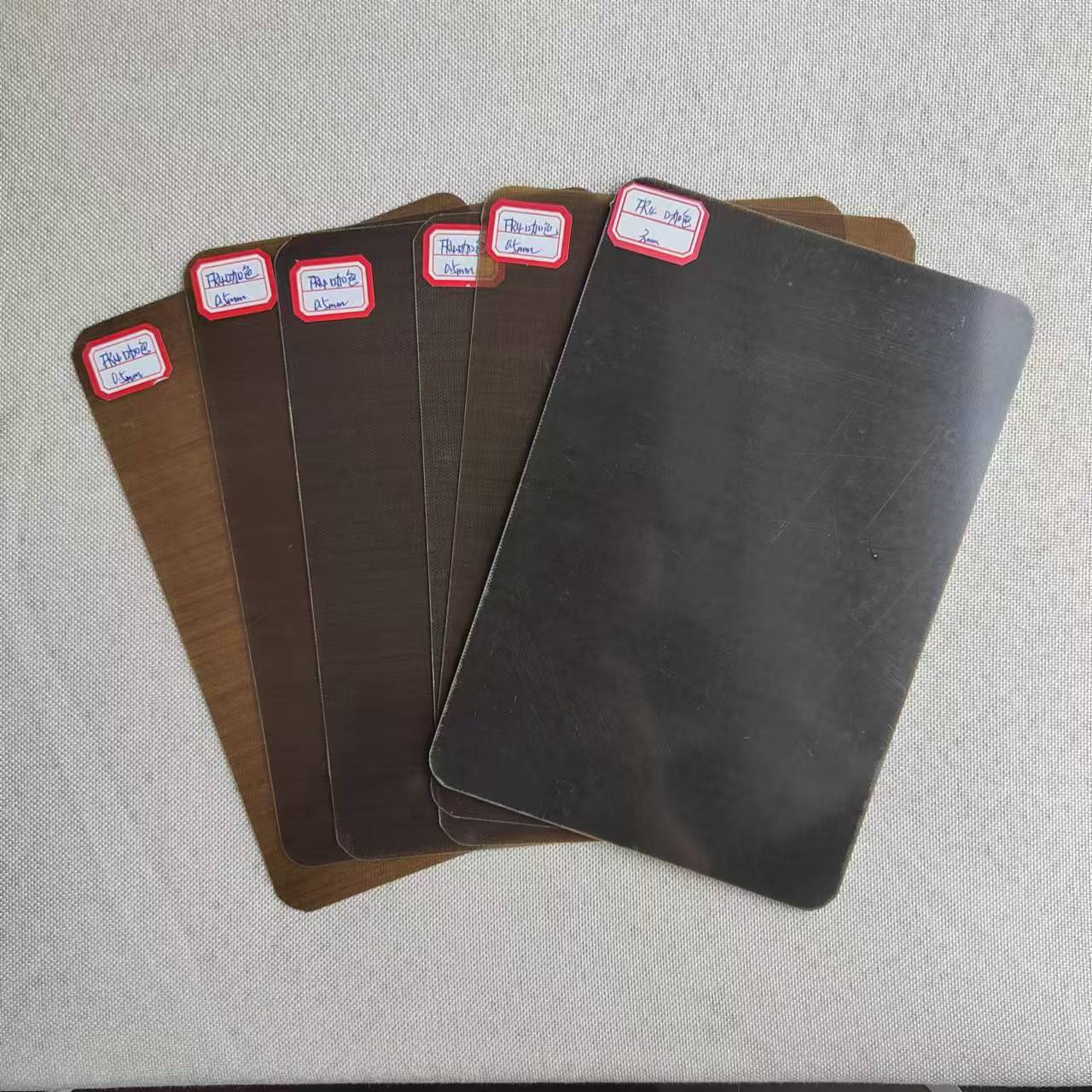

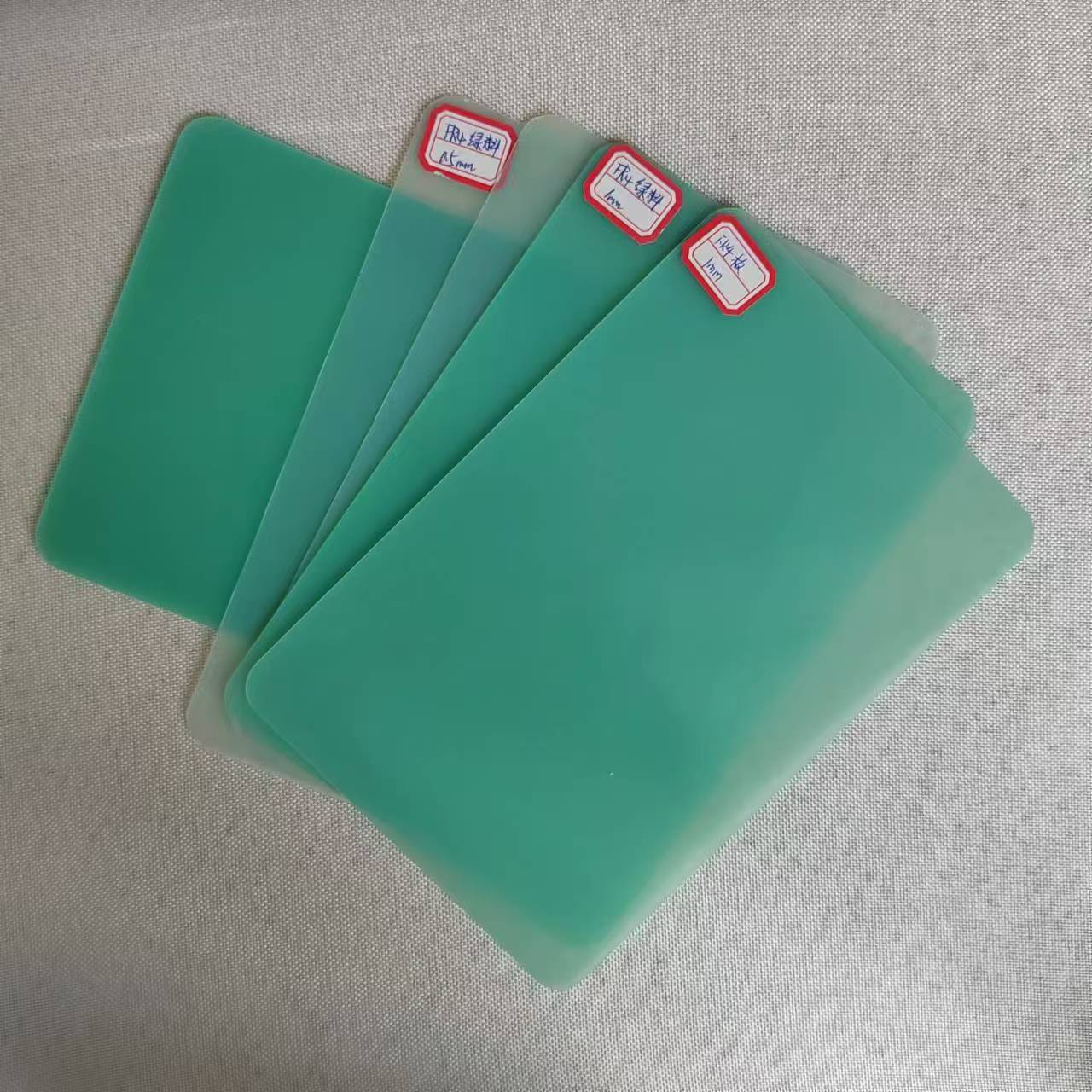

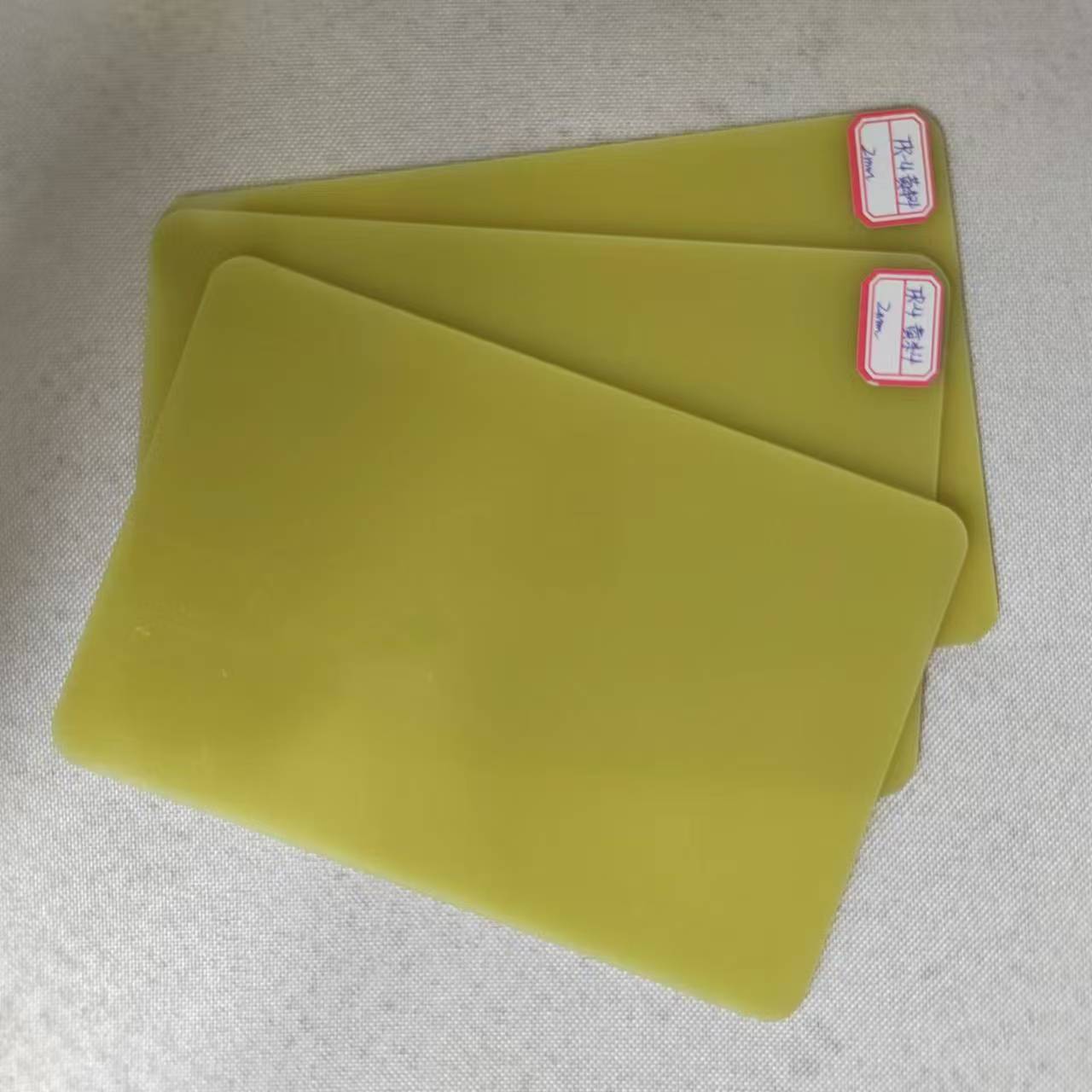

Epoxy Fiberglass Cloth Laminated sheet
base impregnated
epoxy resin binder by processing under pressure and heat.
The product have extremely high mechanical strength, good dielectric properties , good strength properties and fine heat and humidity resistance.
3.Specifications:
--Thickness: 0.1mm-150mm
--Size:980x1980mm,1020x1220mm, 1220x2440mm,1020x2040mm
--Payment terms: T/T or L/C in sight
--Delivery port:Shanghai,Qingdao,Tianjin

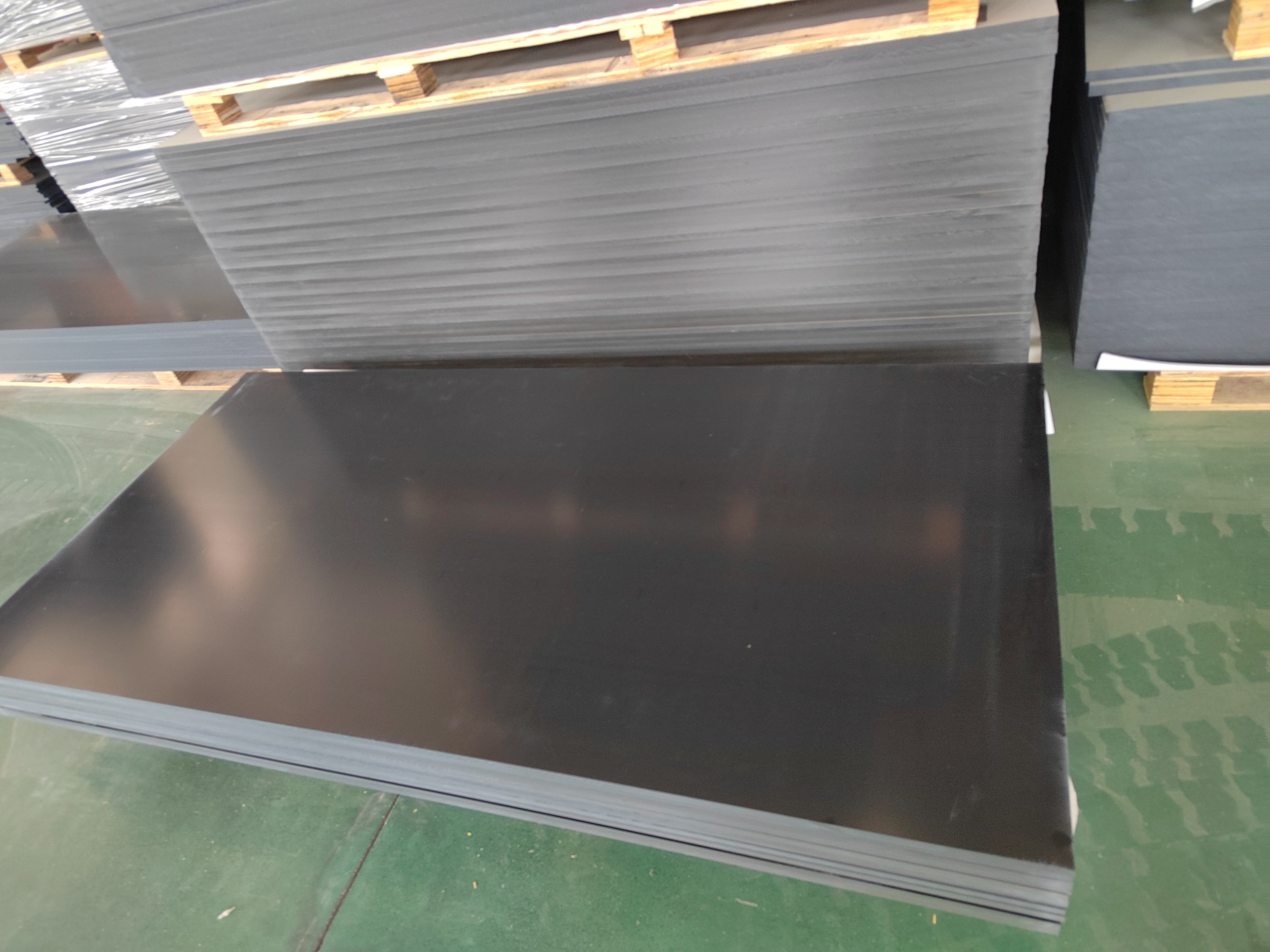

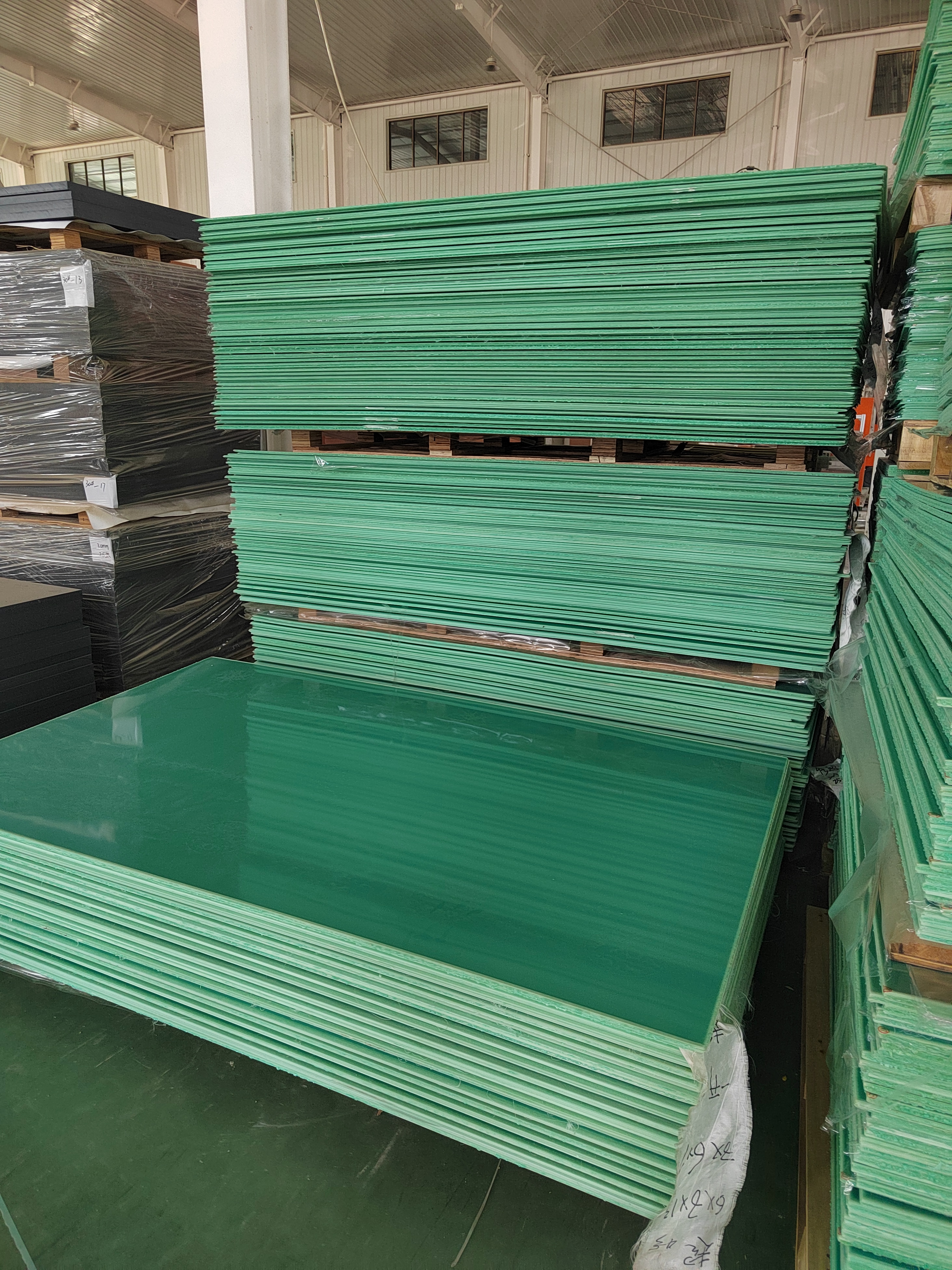

--Pacage: wooden pallet or according to customer requirements.
No | Performance | Unit | Values |
1 | Vertical banding strength | Mpa | ≥340 |
2 | Bending elastic modulus of appearance | Mpa | ≥24000 |
3 | Vertical compression strength | Mpa | ≥350 |
4 | Parallel shear strength | Mpa | ≥30 |
5 | Peel strength | Mpa | ≥300 |
6 | Parallel breakdown voltage (90±2°C OIL) | kv | ≥35 |
7 | Comparative creep age tracking index | / | ≥200 |
8 | T1 long-term thermo stability | / | ≥130 |
9 | Density | g/cm³ | 1.7~1.9 |
